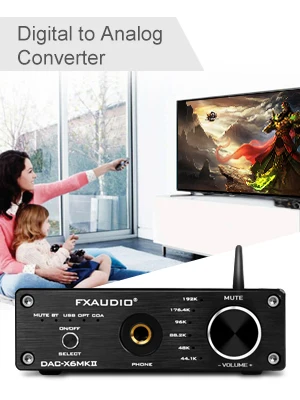

FX-Audio X6 MKII is an ideal solution for your compact, affordable and high-performance audio systems. It works both as a DAC with volume control and headphone amplifier and offer multiple ways to connect to various devices (USB, Coaxial, Optique & Bluetooth).

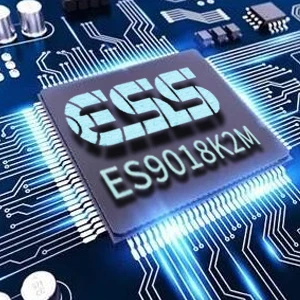

Its analog and digital circuits use high quality components to achieve great audio reproduction in its price range. More specifically it works with an excellent ESS SABRE ES9018 conversion chip. and has a Bluetooth 5.0 QCC3008 interface which supports apt-X protocol.

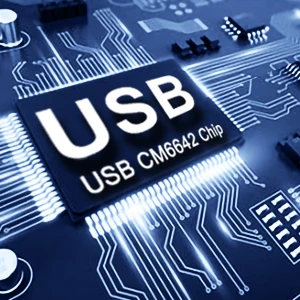

The DAC X6MKII has a USB input on a USB-B connector controlled by a CM6642 interface. The latter allows it to work directly with  audio streams from your computer. This USB connector is not used for powering the X6-MKII, which will avoid most of the typical audio noise if your PC does not have an isolated USB interface.

The device also offers two S / PDIF inputs on Coaxial and Optical connector which open many possibilities for integration with your different digital audio sources (TV, game console, CD player … ect.)

Finally, a QCC3008 interface allows the DAC X6-MKII to directly receive the audio stream from all your devices equipped with Bluetooth connectivity. Its reception circuit is in Bluetooth 5.0 standard and supports apt-X protocols for redoubled audio precision.

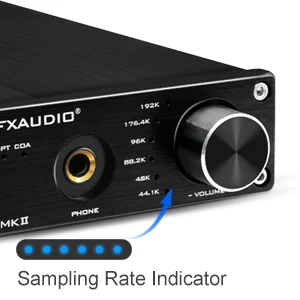

A short pression on the button located on the front panel is all it takes to switch input sources. Two set of LEDs keep the user informed of the active source as well as the current sampling rate.

Its RCA Stereo output with 2Vrms level is used to connect the DAC X6 MKII with a preamplifier, a power amplifier or active speakers.

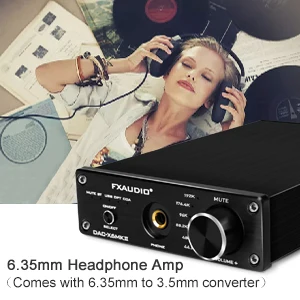

A second 6.35mm jack connector located on the front of the device allows you to easily connect your headphones.

Our brand FX AUDIO is dedicated to serve Hi-Fi audiophile who pursue high quality music. We keep innovative and persistent belief and have produced a series of audio products to improve sound quality and keep sweet soft and real sound. This optical Bluetooth audio to RCA converter solves the problem of the connecting different audio interfaces to analog amplifiers. Welcome to order and enjoy retro music with us!

Specifications:

Chipset: STM8+CM6642+ESS9018+TPA6120+OP275+OCC3008(Bluetooth 5.0)

Sampling Rate: 24Bit/ 192kHz

RCA RMS Level: 2Vrms

Headphone Power Output: 940mW@16Ω, 900mW@32Ω, 700mW@64Ω, 450mW@120Ω

Headphone THD: 0.006%

Headphone SNR: 112dB

Headphone Frequency Response: +0 / -0.5dB(20Hz-20kHz)

DC Power Supply: 12V 1A

Unit Size: 4.6 x 7 x 1.4 inch/11.7 x 17.8 x 3.6cm

Key Product Features:

– Support digital audio conversion to analog audio signals

– 4 Optional Audio Inputs: Optical, Coaxial, PC-USB, Bluetooth
– High performance chipset OCC3008 (Bluetooth 5.0) and decoding chip ESS9018

– Connect 6.35mm jack headphone amplifier and RCA speaker simultaneously

– Connect Bluetooth audio input (phone, tablet, laptop, computer) via Bluetooth

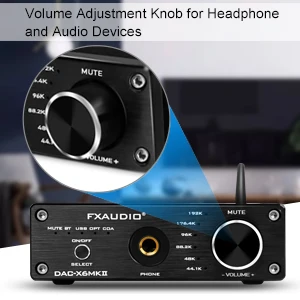

– Volume control knob can control the volume of headphone and speaker

– Support sampling rate at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 24Bit

– Aluminum alloy case, black immersion gold, gold-plated interface
