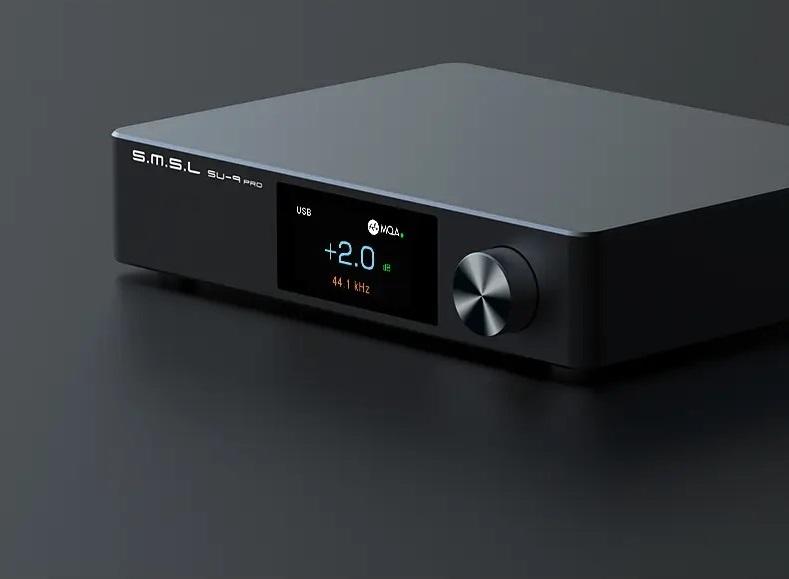

SMSL SU-9 PRO Dual ES9039MPRO Dac MQA&MQA-CD
World’s First DAC With Dual ES9039M Pro DAC Chips.
3rd Generation XMOS XU316 USB Processor.
Self-developed brand-new CK-03 FPGA Clock Architecture.
Decodes high-resolution 32Bit/768kHz PCM and DSD512(native) signals.
Full MQA Decoding with all inputs.
MQA-CD decoder.
High-Resolution Bluetooth connectivity.
LDAC/AptX HD/AptX/SBC/AAC wireless codecs.
Specially designed discrete component linear power supply.
High-end gold-plated input/output interfaces.
RCA/XLR outputs.
USB/Coaxial/Optical inputs.
Fully functioning remote control.
Technical specifications
>Output Level: 5.2Vrms(XLR), 2.5Vrms(RCA).
>THD+N: 0.00005%(-125dB).
>DNR: 134dB.
>SNR: 134dB.
>Sampling Rate: Up to 32-Bit/768kHz, DSD512(USB), 24-Bit/192kHz, DoP64(Optical/Coaxial).
>Power consumption: <10W.
>Standby power: <0.5W.
>Size: 187.5x154x40mm.
>Weight: 0.79kg.
SMSL SU9 Pro is the latest in the SU9 series. It is the world’s first DAC that houses ES9039M Pro DAC chips. It’s a fully loaded high-end Desktop DAC that packs an impressive performance with stunning looks. SMSL has designed the SU9 Pro with top-quality components for premium performance!!
